Climate computers

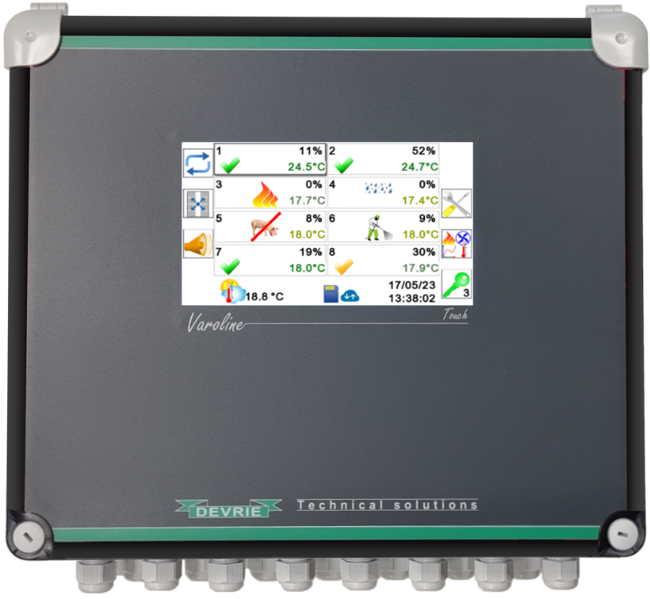

Varoline LU Touch

Robust, user-friendly and versatile

The Varoline LU Touch is more than just a climate computer and has various control options including: ventilation, central ventilation, central air supply, valve control, blind control, heating, cooling, negative-, positive-, equal pressure ventilation, alarm, heat exchanger, boiler cascade control as well as timer programs, light programs and soaking programs. The controls can be adjusted to your own wishes. The climate controls regulate depending on the weather and animal and can create a perfect climate with or without curves. The 7" touch colour display provides a clear overview of 8 departments at a glance. Long-term data logging is possible using an SD card and/or an internet connection. A selection from the various data logger options: consumption meters (water meters, energy meters), NH3 sensors, heat exchangers, temperatures, ventilation and central ventilation. The various access levels allow users to be given different authorisations. The Varoline LU Touch is equipped with various connections as standard and has 7 universal connection points for expansion boards. This means that the Varoline can be expanded to meet your own needs. In addition, multiple Varoline computers can be connected to each other. The climate computers are cloud-compatible and can therefore be accessed via the Varocloud app. With the Varocloud app, you have a secure connection to your climate computer anywhere in the world where you have access to the internet.

The Varoline LU Touch is equipped as standard with:

• 7" touch colour display

• 2 Ethernet connections (Switch throughput)

• Can-Bus connections

• USB connection

• SD card slot

• 4 analogue outputs (0-10V) (2x ventilation, 2x heating)

• 3 floating switch contacts max. 250V/2A
(1x alarm, 2x heating or time switches)

• 3 temperature inputs (2x department sensor, 1x outdoor sensor)

• 2 universal inputs (ttm, 0-10V or 4-20mA)

• 10 separately fused connections 24V/250mA

• 7 connection options for expansion PCBs

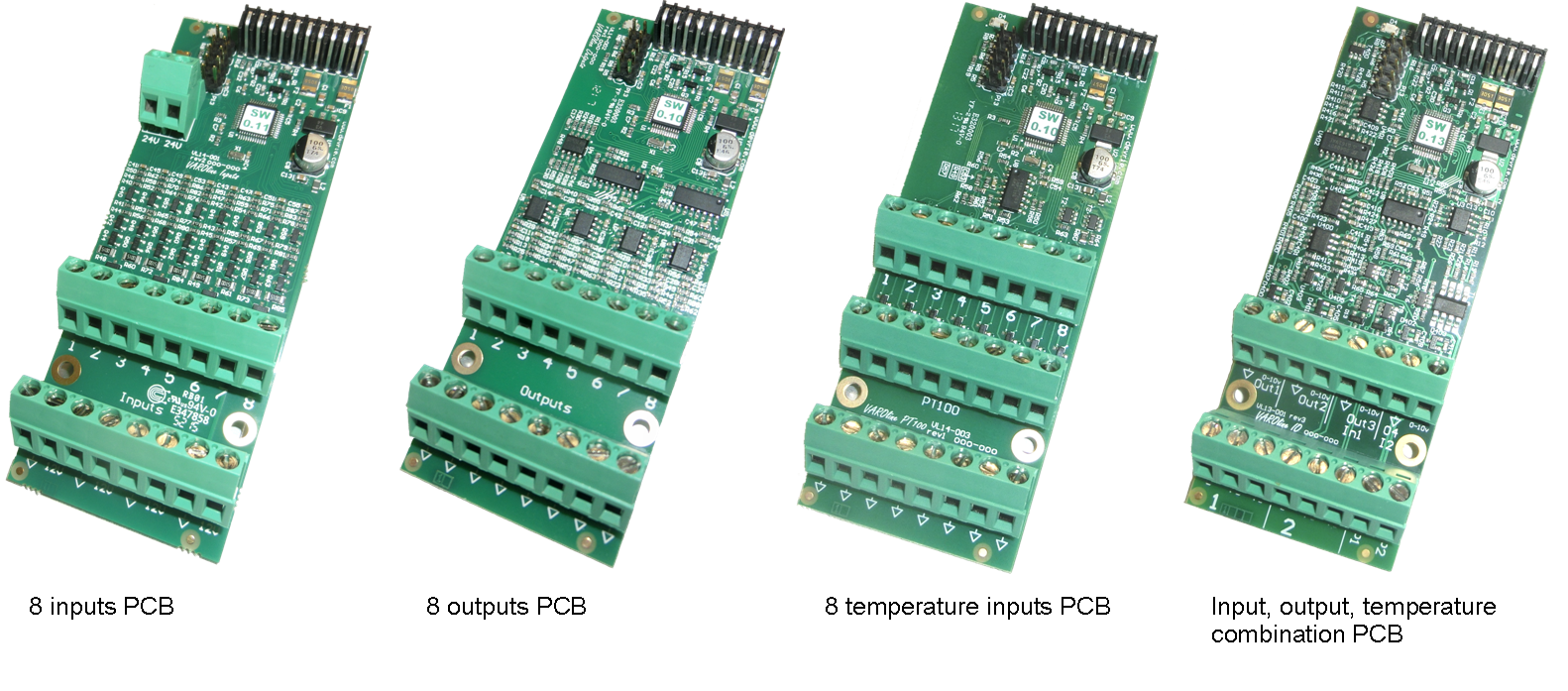

Expansion PCBs, free choice for many possibilities

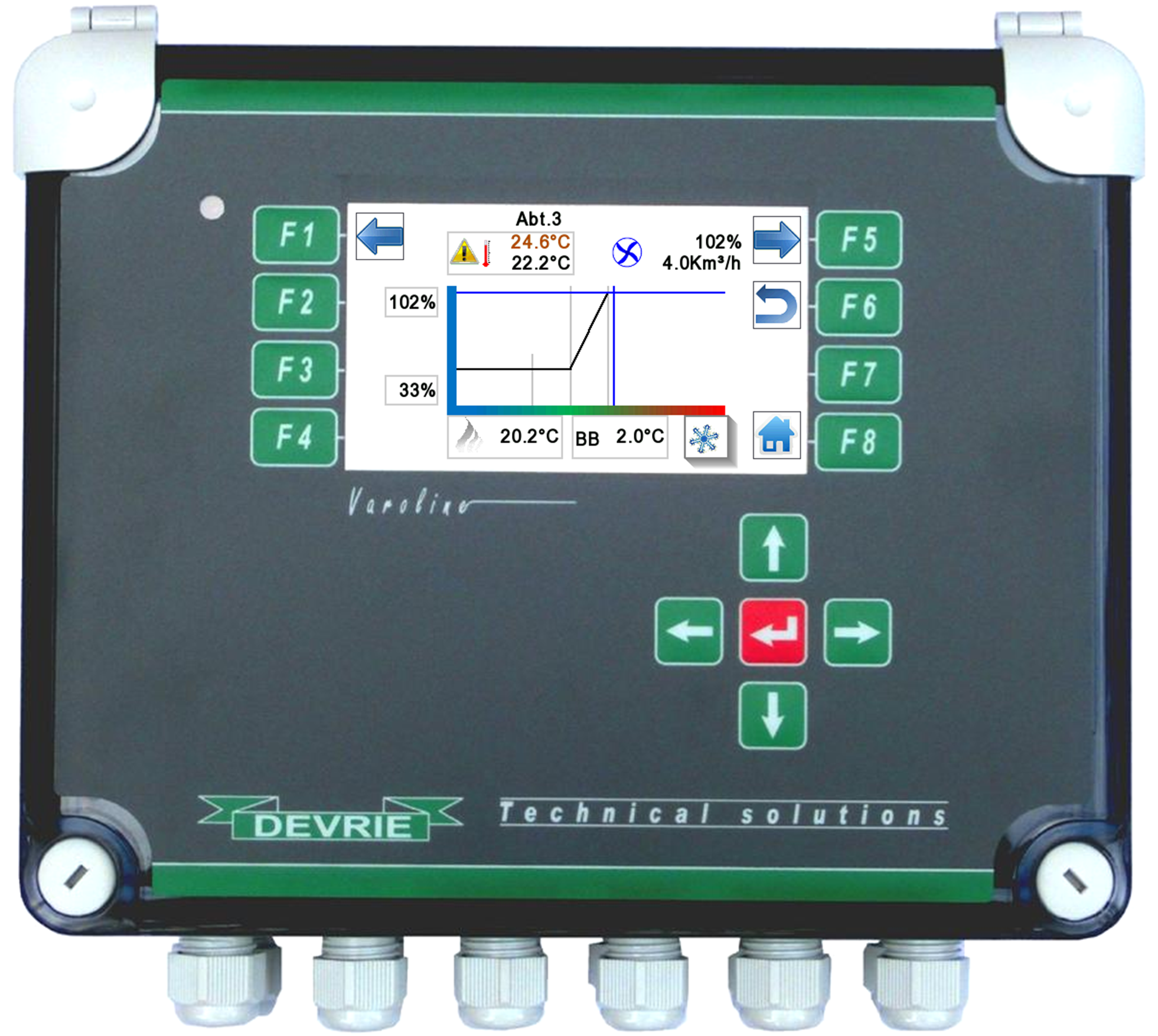

Varoline SU

The Varoline SU is equipped as standard with:

• colour display and function buttons

• Ethernet connection

• Can-Bus connections

• SD card slot

• 4 analogue outputs (0-10V) (2x ventilation, 2x heating)

• 3 floating switch contacts max. 250V/2A (1x alarm, 2x heating or time switches)

• 3 temperature inputs (2x department sensor, 1x outdoor sensor)

• 2 universal inputs (ttm, 0-10V or 4-20mA)

• 4 separately fused connections 24V/250mA

• 2 connection options for expansion PCBs

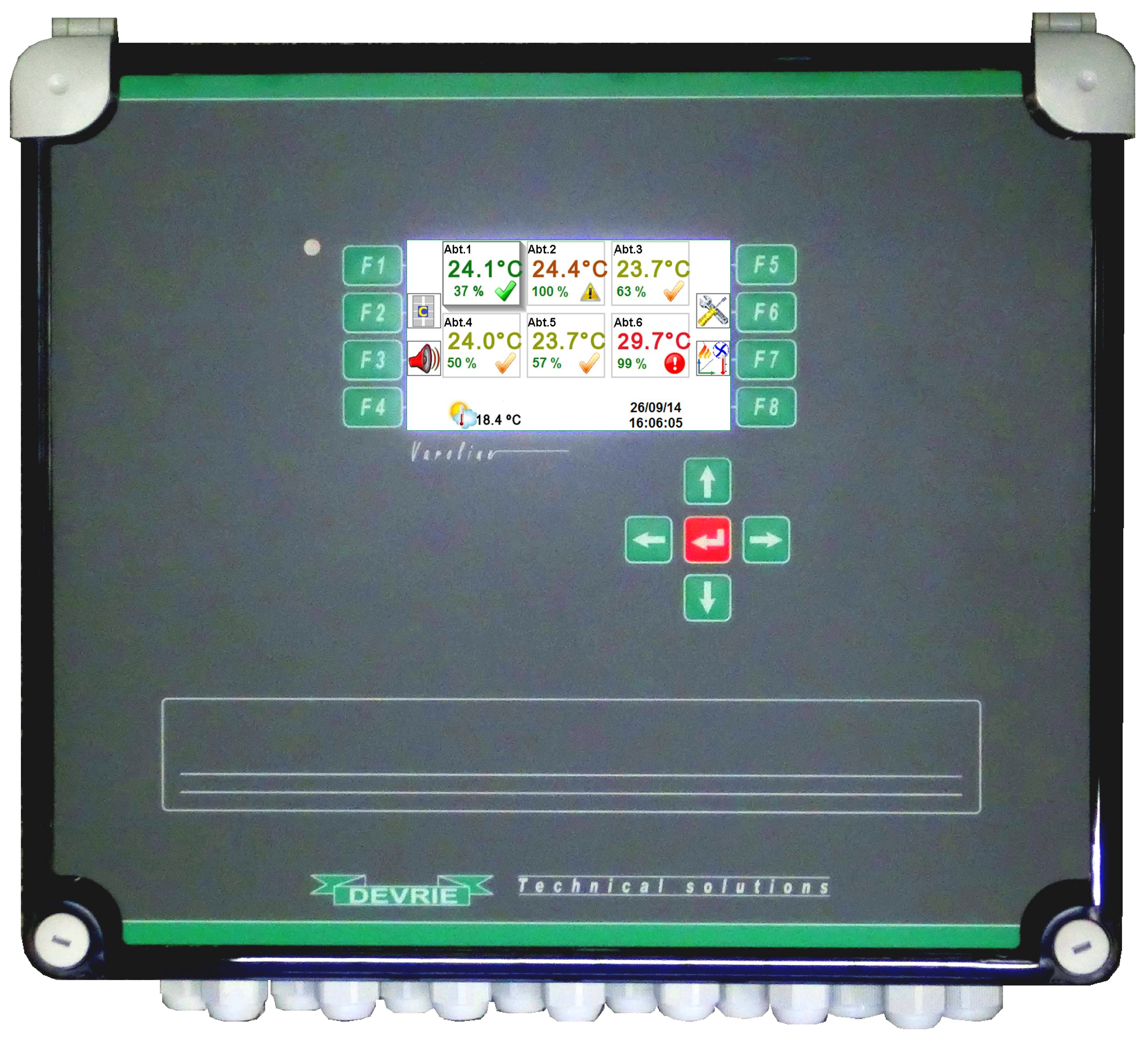

Varoline LU

The Varoline LU is equipped as standard with:

• colour display and function buttons

• Ethernet connection

• Can-Bus connections

• SD card slot

• 4 analogue outputs (0-10V) (2x ventilation, 2x heating)

• 3 floating switch contacts max. 250V/2A (1x alarm, 2x heating or time switches)

• 3 temperature inputs (2x department sensor, 1x outdoor sensor)

• 2 universal inputs (ttm, 0-10V or 4-20mA)

• 10 separately fused connections 24V/250mA

• 7 connection options for expansion PCBs

Devrie has been developing and producing climate computers for livestock farming since the mid-eighties. The climate computers are very robust, durable and extremely user-friendly. Over the years, climate computers have been further developed and have therefore become better and more versatile. The current models are designed with a colour display and symbol menu. This makes the climate computers very clear and easy to use. The climate computers are cloud-compatible and can therefore be accessed via the Varocloud app. With the Varocloud app, you have a secure connection to your climate computer anywhere in the world where you have access to the internet.
